產品介紹
詳細內容

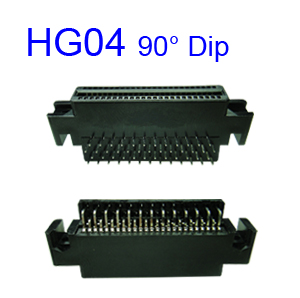

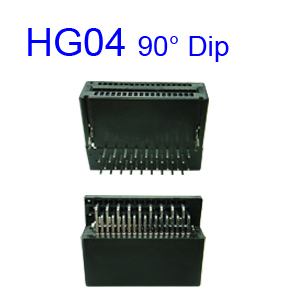

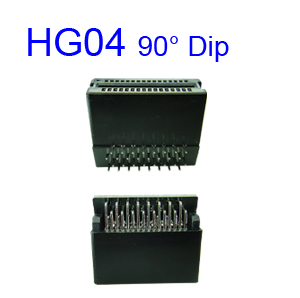

HG04--90° Dip Card Edge Connector
| 所屬分類: | 90° Dip Type |
|---|
詳細介紹

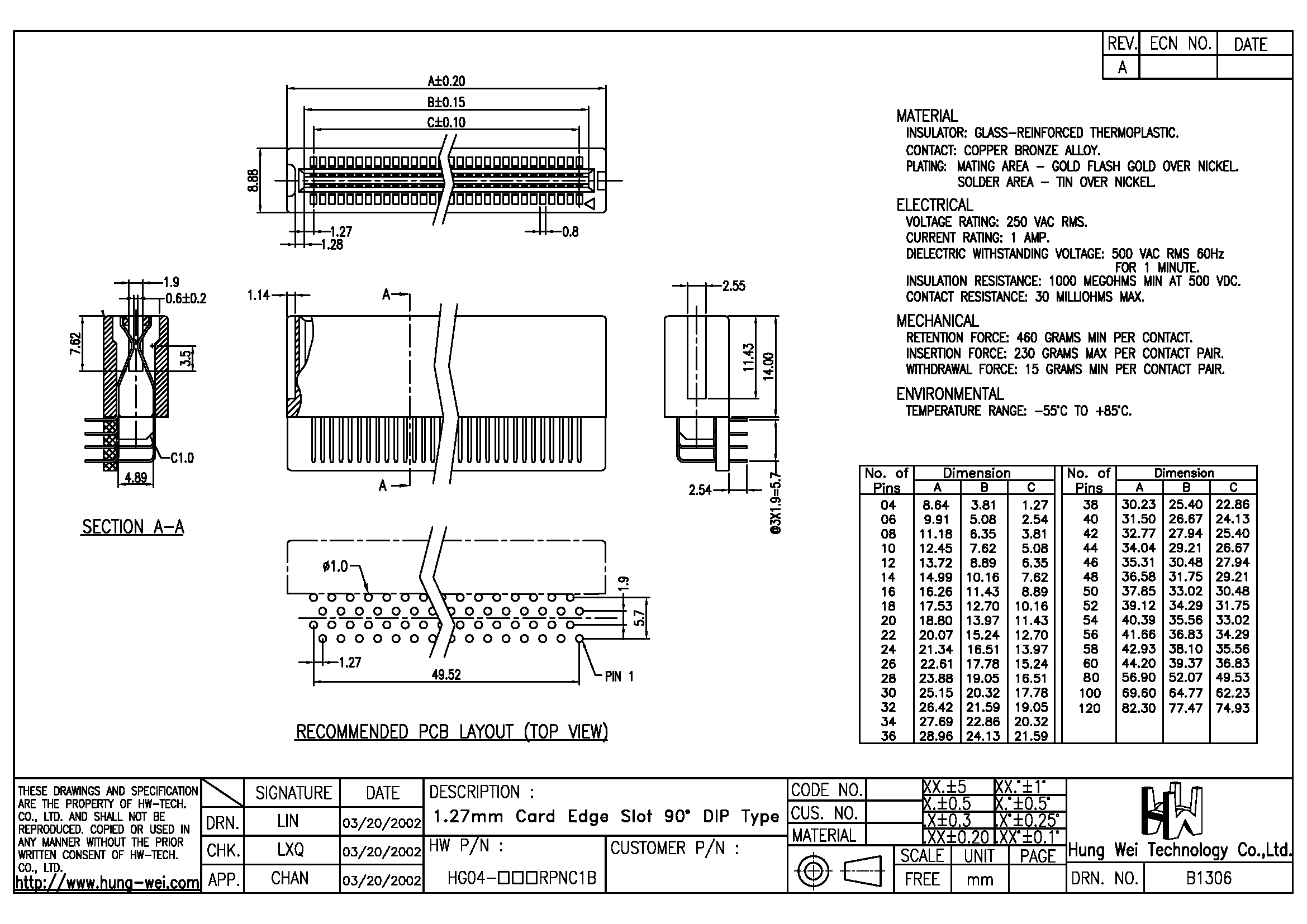

1. (1) Plastic Height : 15.5mm(H) 8.88mm(W)
(2) No. of Pins : 04 , 06 , 08 , ~ 80 , 100 , 120

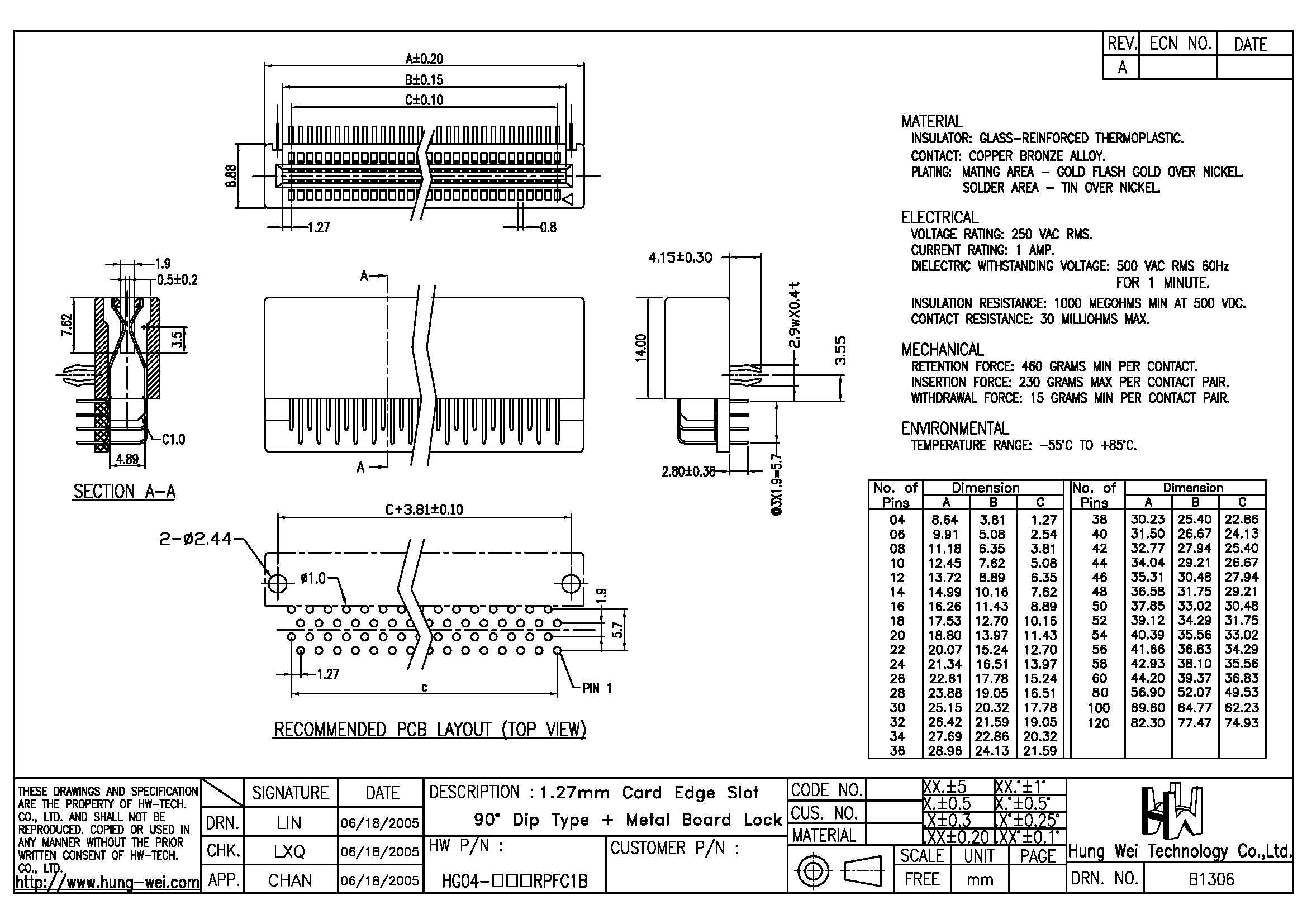

(3) Optional Metal Board Lock

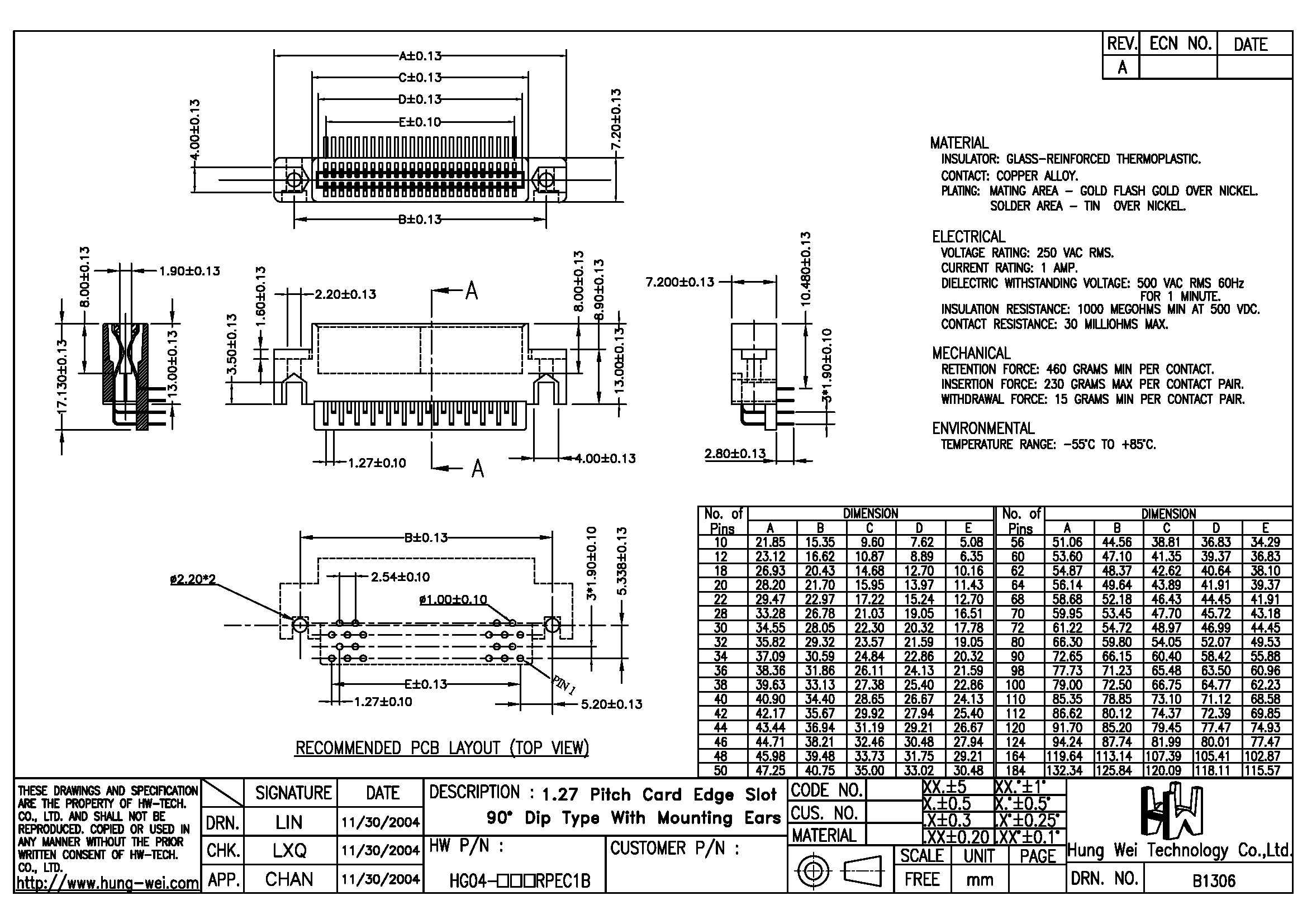

2. (1) Plastic Height : 13.0mm(H) 7.20mm(W) *With Mounting Ears*
(2) No. of Pins : 10 , 12 , 18 ~ 124 , 164 , 184
